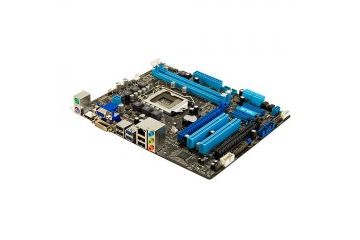

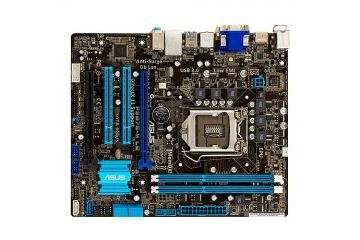

1005 S-1155 ASUS P8B75-M LE, Micro-ATX

Spletna cena z DDV

€ 77,31   € 77,31
oz. že od € 2,27/mesec* (36 mesecev/5,50% obrestna mera)

INFORMATIVNI IZRAČUN PLAČIL NA OBROKE
Zapri

INFORMATIVNI IZRAČUN PLAČILA NA OBROKE Z PLAČILNO KARTICO DINERS


Zaloga: Preverite na info@sestavi.si ali preko obrazca za spletno pomoč

Ni več v ponudbi

Koda izdelka:


Opis izdelka

Šifra izdelka: 90-MIBIA0-G0EAY0DZ





Specifications


CPUIntel® Socket 1155 for 3rd/2nd Generation Processors
Supports Intel® 22 nm CPU
Supports Intel® 32 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
Vezni naborIntel® B75
Memory2 x DIMM, Max. 16GB, DDR3 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
* Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists).
GraphicIntegrated Graphics Processor
Multi-VGA output support : HDMI/DVI/RGB ports
- Supports HDMI with max. resolution 1920 x 1200 @ 60 Hz
- Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 2048 x 1536 @ 75 Hz
Maximum shared memory of 1024 MB
Multi-GPU SupportSupports LucidLogix® Virtu™ MVP Technology *1
Expansion Slots1 x PCIe 3.0/2.0 x16
1 x PCIe 2.0 x16 (x4 mode)
2 x PCI
StorageIntel® B75 chipset :
5 x SATA 3Gb/s port(s), blue
1 x SATA 6Gb/s port(s), gray
LANRealtek® 8111F-VB-CG, 1 x Gigabit LAN Controller(s)
AudioVIA VT1708S 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, Anti-pop Function
USB PortsIntel® B75 chipset :
8 x USB 2.0 port(s) (4 at back panel, black, 4 at mid-board)
Intel® B75 chipset :
4 x USB 3.0 port(s) (2 at back panel, blue, 2 at mid-board)
Special ZnačilnostiASUS EPU :
- EPU
GPU Boost
ASUS Exclusive Značilnosti :
- MemOK!
- AI Suite II
- Ai Charger
- Anti-Surge
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- Network iControl
- USB 3.0 Boost
ASUS Quiet Thermal Solution :
- ASUS Fan Xpert
- ASUS Q-Fan 2
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2

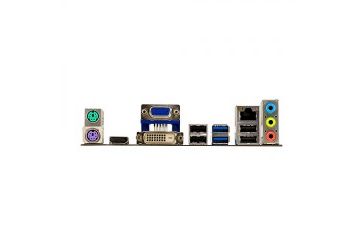

Back I/O Ports1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.0
4 x USB 2.0
3 x Audio jack(s)
Internal I/O Ports1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x COM port(s) connector(s)
1 x SATA 6Gb/s connector(s)
5 x SATA 3Gb/s connector(s)
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x parvsel port connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x System panel(s)
1 x MemOK! button(s)
AccessoriesUser's manual
I/O Shield
1 x SATA 3Gb/s cable(s)
1 x SATA 6Gb/s cable(s)
BIOS128 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3
ManageabilityWfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE
Support DiscDrivers
ASUS Utilities
ASUS Update
Anti-virus software (OEM version)
Form FactoruATX Form Factor
9.6 inch x 8 inch ( 24.4 cm x 20.3 cm )
Note*1: LucidLogix Virtu MVP supports Windows 7 operating systems.
