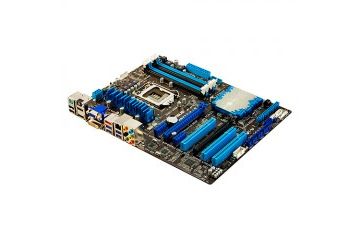

1005 S-1155 ASUS P8Z77-V LE, ATX

Spletna cena z DDV

€ 161,08   € 161,08
oz. že od € 4,72/mesec* (36 mesecev/5,50% obrestna mera)

INFORMATIVNI IZRAČUN PLAČIL NA OBROKE
Zapri

INFORMATIVNI IZRAČUN PLAČILA NA OBROKE Z PLAČILNO KARTICO DINERS


Zaloga: Preverite na info@sestavi.si ali preko obrazca za spletno pomoč

Ni več v ponudbi

Koda izdelka:


Opis izdelka

Šifra izdelka: 90-MIBHP0-G0EAY0VZ





Specifications


CPUIntel® Socket 1155 for 3rd/2nd Generation Processors
Supports Intel® 22 nm CPU
Supports Intel® 32 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list
Vezni naborIntel® Z77
Memory4 x DIMM, Max. 32GB, DDR3 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists).
GraphicIntegrated Graphics Processor
Multi-VGA output support : HDMI/DVI/RGB/DisplayPort ports
- Supports HDMI with max. resolution 1920 x 1200 @ 60 Hz
- Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 2048 x 1536 @ 75 Hz
- Supports DisplayPort with max. resolution 2560 x 1600 @ 60 Hz
Maximum shared memory of 1696 MB
Supports Intel® HD Graphics, InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Multi-GPU SupportSupports AMD Quad-GPU CrossFireX™ Technology *1
Supports LucidLogix® Virtu™ MVP Technology *2
Expansion Slots1 x PCIe 3.0/2.0 x16 (blue) *3
1 x PCIe 2.0 x16 (x4 mode, black) *4
2 x PCIe 2.0 x1
3 x PCI
StorageIntel® Z77 chipset :
2 x SATA 6Gb/s port(s), gray
4 x SATA 3Gb/s port(s), blue
Support Raid 0, 1, 5, 10
Supports Intel® Smart Response Technology, Intel® Rapid Start Technology, Intel® Smart Connect Technology *5
Marvell® PCIe SATA 6Gb/s controller : *6
1 x eSATA 6Gb/s port(s), red
1 x SATA 6Gb/s port(s), navy blue
LANRealtek® 8111F, 1 x Gigabit LAN Controller(s)
AudioRealtek® ALC892 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio Feature :
- Absolute Pitch 192kHz/ 24-bit True BD Lossless Sound
- Blu-ray audio layer Content Protection
- Optical S/PDIF out port(s) at back panel
USB PortsIntel® Z77 chipset : *7
4 x USB 3.0 port(s) (2 at back panel, blue, 2 at mid-board)
Intel® Z77 chipset :
10 x USB 2.0 port(s) (2 at back panel, black, 8 at mid-board)
ASMedia® USB 3.0 controller : *7
2 x USB 3.0 port(s) (2 at back panel, blue)
Overclocking ZnačilnostiOverclocking Protection :
- ASUS C.P.R.(CPU Parameter Recall)
Special ZnačilnostiASUS Dual Intelligent Processors 3 with New DIGI+ Power Control :
SMART DIGI+ :
- Smart DIGI+ Key- quickly delivers higher VRM frequency, voltage and current for superior CPU/iGPU/DRAM overclocking performance with one switch.
- Smart CPU Power Level (Intel® VRD 12.5 Future Power Design)- provides the best digital power saving conditions.
ASUS Hybrid Processor - TPU :
- Auto Tuning
- TurboV
- GPU Boost
- TPU switch
ASUS EPU :
- EPU
- EPU switch
ASUS Digital Power Design :
- Industry leading Digital 8 Phase Power Design
(6 -phase for CPU, 2 -phase for iGPU)
- Industry leading Digital 1 Phase DRAM Power Design
- CPU Power Utility
- DRAM Power Utility
ASUS Exclusive Značilnosti :
- USB BIOS Flashback
- MemOK!
- AI Suite II
- Ai Charger+
- USB Charger+
- Anti-Surge
- Low EMI Solution
- ESD Guards
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- Network iControl
- USB 3.0 Boost
- Disk Unlocker
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution & MOS Hladilnik
- ASUS Fan Xpert+
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
ASUS Q-Design :
- ASUS Q-Slot
100% All High-quality Conductive Polymer Capacitors

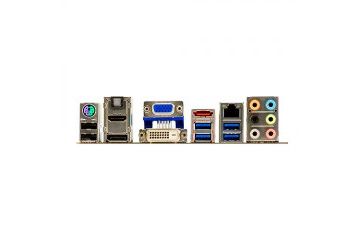

Back I/O Ports1 x PS/2 keyboard/mouse combo port(s)
1 x DVI
1 x D-Sub
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.0
2 x USB 2.0
1 x Optical S/PDIF out
6 x Audio jack(s)
Internal I/O Ports1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
4 x USB 2.0 connector(s) support(s) additional 8 USB 2.0 port(s)
1 x COM port(s) connector(s)
3 x SATA 6Gb/s connector(s)
4 x SATA 3Gb/s connector(s)
1 x CPU Fan connector(s) (4 -pin)
2 x Chassis Fan connector(s) (4 -pin)
1 x Power Fan connector(s) (3 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x MemOK! button(s)
1 x TPU switch(es)
1 x EPU switch(es)
1 x Clear CMOS jumper(s)
1 x USB BIOS Flashback button(s)
AccessoriesUser's manual
I/O Shield
2 x SATA 3Gb/s cable(s)
2 x SATA 6Gb/s cable(s)
BIOS64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, F12 PrintScreen Function, F3 Shortcut Function and ASUS DRAM SPD (Serial Presence Detect) memory information
ManageabilityWfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE
Support DiscDrivers
ASUS Utilities
ASUS Update
Anti-virus software (OEM version)
Form FactorATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Note*1: Disable PCIe x1_1 and PCIe x1_2 slots and manual set the PCIe x16_2 to x4 mode in BIOS when configure CrossFireX™ with dual graphics cards.
*2: LucidLogix Virtu MVP supports Windows 7 operating systems.
*3: PCIe 3.0 speed is supported by Intel® 3rd generation Core™ processors.
*4: The PCIe x16_2 slot shares Pasovna širina with PCIe x1_1 slot, PCIe x1_2 slot. The default setting is x2 mode. Go to the BIOS setup to change the settings.
*5: Supports on Intel® Core™ processor family with Windows 7 operating systems.
*6: These SATA ports are for data hard drivers only. ATAPI devices are not supported.
*7-1: The USB 3.0 ports only support Windows® 7 or later versions.
*7-2: Supports ASUS USB 3.0 Boost UASP Mode.
