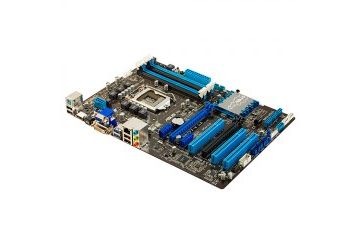

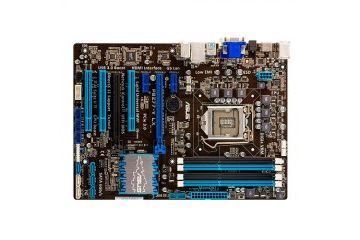

1005 S-1155 ASUS P8Z77-V LX, ATX

Spletna cena z DDV

€ 118,31   € 118,31
oz. že od € 3,47/mesec* (36 mesecev/5,50% obrestna mera)

INFORMATIVNI IZRAČUN PLAČIL NA OBROKE
Zapri

INFORMATIVNI IZRAČUN PLAČILA NA OBROKE Z PLAČILNO KARTICO DINERS


Zaloga: Preverite na info@sestavi.si ali preko obrazca za spletno pomoč

Ni več v ponudbi

Koda izdelka:


Opis izdelka

Šifra izdelka: 90-MIBHT0-G0EAY0VZ





Specifications


CPUIntel® Socket 1155 for 3rd/2nd Generation Processors
Supports Intel® 22 nm CPU
Supports Intel® 32 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list
Vezni naborIntel® Z77
Memory4 x DIMM, Max. 32GB, DDR3 MHz Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists).
GraphicIntegrated Graphics Processor
Multi-VGA output support : HDMI/DVI/RGB ports
- Supports HDMI with max. resolution 1920 x 1200 @ 60 Hz
- Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 2048 x 1536 @ 75 Hz
Maximum shared memory of 1696 MB
Supports Intel® HD Graphics
Multi-GPU SupportSupports AMD Quad-GPU CrossFireX™ Technology
Supports LucidLogix® Virtu™ MVP Technology *1
Expansion Slots1 x PCIe 3.0/2.0 x16 (blue) *2
1 x PCIe 2.0 x16 (x4 mode, black)
2 x PCIe 2.0 x1
3 x PCI
StorageIntel® Z77 chipset :
2 x SATA 6Gb/s port(s), gray
4 x SATA 3Gb/s port(s), blue
Support Raid 0, 1, 5, 10
Supports Intel® Smart Response Technology, Intel® Rapid Start Technology, Intel® Smart Connect Technology *3
LANRealtek® 8111E , 1 x Gigabit LAN Controller(s)
AudioRealtek® ALC887 8-Channel High Definition Audio CODEC *4
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio Feature :
- Optical S/PDIF out port(s) at back panel
USB PortsIntel® Z77 chipset : *5
4 x USB 3.0 port(s) (2 at back panel, blue, 2 at mid-board)
Intel® Z77 chipset :
10 x USB 2.0 port(s) (4 at back panel, black, 6 at mid-board)
Overclocking ZnačilnostiOverclocking Protection :
- ASUS C.P.R.(CPU Parameter Recall)
Special ZnačilnostiASUS EPU :
- EPU
ASUS Digital Power Design :
- Industry leading 4 + 1 + 1 Phase Power Design
- ASUS DIGI+ VRM Utility
TurboV
GPU Boost
ASUS Exclusive Značilnosti :
- MemOK!
- AI Suite II
- Ai Charger
- Anti-Surge
- Low EMI Solution
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- Network iControl
- USB 3.0 Boost
- Disk Unlocker
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert+
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
100% All High-quality Conductive Polymer Capacitors

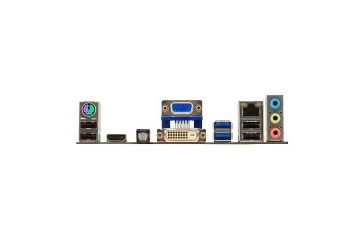

Back I/O Ports1 x PS/2 keyboard/mouse combo port(s)
1 x DVI
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.0
4 x USB 2.0
1 x Optical S/PDIF out
3 x Audio jack(s)
Internal I/O Ports1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
1 x COM port(s) connector(s)
2 x SATA 6Gb/s connector(s)
4 x SATA 3Gb/s connector(s)
1 x CPU Fan connector(s) (4 -pin)
2 x Chassis Fan connector(s) (4 -pin)
1 x Power Fan connector(s) (3 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x MemOK! button(s)
1 x GPU Boost switch(es)
1 x Clear CMOS jumper(s)
AccessoriesUser's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
BIOS64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, F12 PrintScreen, F3 Shortcut Function and ASUS DRAM SPD (Serial Presence Detect) memory information
ManageabilityWfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE
Support DiscDrivers
ASUS Utilities
ASUS Update
Anti-virus software (OEM version)
Form FactorATX Form Factor
12 inch x 8.6 inch ( 30.5 cm x 21.8 cm )
Note*1: LucidLogix Virtu MVP supports Windows 7 operating systems.
*2: PCIe 3.0 speed is supported by Intel® 3rd generation Core™ processors.
*3: Supports on Intel® Core™ processor family with Windows 7 operating systems.
*4: Use a chassis with HD audio module in the front panel to support an 8-channel audio output
*5-1: Supports ASUS USB 3.0 Boost UASP Mode.
*5-2: The USB 3.0 ports only support Windows® 7 or later versions.
