Osnovne plošče

1005 GIGABYTE GA-B85M-D3H

Spletna cena z DDV

€ 81,37   € 78,93 -3,00%
oz. že od € 2,38/mesec* (36 mesecev/5,50% obrestna mera)

INFORMATIVNI IZRAČUN PLAČIL NA OBROKE
Zapri

INFORMATIVNI IZRAČUN PLAČILA NA OBROKE Z PLAČILNO KARTICO DINERS


Zaloga: Preveri

Ni več v ponudbi

Koda izdelka: GA-B85M-D3H


Opis izdelka

#GA-B85M-D3H / Sound G-LAN SATA3 USB 3.0





CPU
  1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel®Pentium® processors/Intel® Celeron® processors in the LGA1150 package
  2. L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Vezni nabor
  1. Intel® B85 Express Vezni nabor
Memory
  1. 4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory
    * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is instvsed, the actual memory size displayed will be less than the size of the physical memory instvsed.
  2. Dual channel memory architecture
  3. Support for DDR3 1600/1333 MHz memory modules
  4. Support for non-ECC memory modules
  5. Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics Integrated Graphics Processor:
  1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
  2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
    * The DVI-D port does not support D-Sub connection by adapter.
  3. 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
    * Support for HDMI 1.4a version.
  4. Maximum shared memory of 1 GB
Audio
  1. Realtek® ALC892 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
    * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
  4. Support for S/PDIF Out
LAN
  1. Realtek® GbE LAN chip (10/100/1000 Mbit)
Expansion Slots
  1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
    * For optimum performance, if only one PCI Express graphics card is to be instvsed, be sure to install it in the PCIEX16 slot.
    (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
  2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
  3. 2 x PCI slots
Multi-Graphics Technology
  1. Support for AMD CrossFire™ technology
Storage Interface Vezni nabor:
  1. 4 x SATA 6Gb/s connectors (SATA3 0/1/2/3) supporting up to 4 SATA 6Gb/s devices
  2. 2 x SATA 3Gb/s connectors (SATA2 0/1) supporting up to 2 SATA 3Gb/s devices
USB Vezni nabor:
  1. Up to 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB headers)
  2. Up to 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 4 x SATA 6Gb/s connectors
  4. 2 x SATA 3Gb/s connectors
  5. 1 x CPU fan header
  6. 3 x system fan headers
  7. 1 x front panel header
  8. 1 x front panel audio header
  9. 1 x S/PDIF Out header
  10. 1 x USB 3.0/2.0 header
  11. 2 x USB 2.0/1.1 headers
  12. 1 x serial port header
  13. 1 x parvsel port header
  14. 1 x Trusted Platform Module (TPM) header
  15. 1 x Clear CMOS jumper

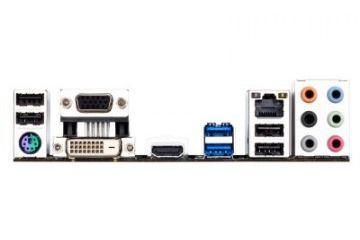

Back Panel Connectors
  1. 1 x PS/2 keyboard/mouse port
  2. 1 x D-Sub port
  3. 1 x DVI-D port
  4. 1 x HDMI port
  5. 2 x USB 3.0/2.0 ports
  6. 4 x USB 2.0/1.1 ports
  7. 1 x RJ-45 port
  8. 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)
I/O Controller
  1. iTE® I/O Controller Chip
H/W Monitoring
  1. System voltage detection
  2. CPU/System temperature detection
  3. CPU/System fan speed detection
  4. CPU overheating warning
  5. CPU/System fan fail warning
  6. CPU/System fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
  1. 2 x 64 Mbit flash
  2. Use of licensed AMI EFI BIOS
  3. Support for DualBIOS™
  4. PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a
Unique Značilnosti
  1. Support for Q-Flash
  2. Support for Xpress Install
  3. Support for APP Center
    * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
    @BIOS
    EasyTune
    EZ Setup
    USB Blocker
  4. Support for ON/OFF Charge
Bundle Software
  1. Norton Internet Security (OEM version)
  2. Intel® Rapid Start Technology
  3. Intel® Smart Connect Technology
  4. Intel® Small Business Advantage
Operating System
  1. Support for Windows 8/7
Form Factor
  1. Micro ATX Form Factor; 24.4cm x 22.5cm
