Osnovne plošče
Spletna cena z DDV
Zaloga: Dobava 1-2 tedna

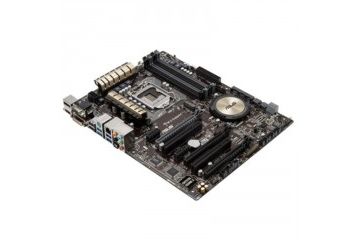

Šifra izdelka: Z97-A
PODNOŽJE: INTEL LGA 1150
ZA PROCESORJE: 5th/New 4th/4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
FORMAT: ATX Form Factor 30.5 x 24.4 cm
VEZNI ČIP: Intel Z97
POMNILNIK:
4 x DIMM DDR3 (3200(O.C.)/3100(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666(O.C.)/2600(O.C.)/2400(O.C.)/2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1600/1333MHz) do skupno 32GB kapacitete, dual channel podpora
GRAFIKA: DA / Intel® HD Graphics
RAID: DA (0,1,5,10)
Intel® Smart Response Technology, Intel® Rapid Start Technology, Intel® Smart Connect Technology
RAZŠIRITVENE REŽE:
2 x PCIe 3.0/2.0 x16 (x16 or dual x8)
1 x PCIe 2.0 x16 (x2 mode)
2 x PCIe 2.0 x1
2 x PCI
MREŽNA KARTICA: Intel I218V Gigabit LAN Controller(s)
ZVOČNA KARTICA: Realtek® ALC892 8-Channel High Definition Audio CODEC
NOTRANJI PRIKLJUČKI:
1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
1 x SATA Express connector: , compatible with 2 x SATA 6.0 Gb/s ports
1 x M.2 Socket 3 for M Key, type 2260/2280 devices
1 x TPM header
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x CPU OPT Fan connector(s) (1 x 4 -pin)
4 x Chassis Fan connector(s) (4 x 4 -pin)
1 x S/PDIF out header(s)
1 x Thunderbolt header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x EZ XMP switch
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s) (Q-Connector)
1 x DRCT header(s)
1 x MemOK! button(s)
1 x TPU switch(es)
1 x EPU switch(es)
1 x Power-on button(s)
1 x Clear CMOS jumper(s)
ZUNANJI PRIKLJUČKI:
1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x D-Sub
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.0 (blue)
2 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s)
DODATNO:
5-Way Optimization by Dual Intelligent Processors 5
- Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 3, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.
ASUS 5X Protection :
- ASUS DIGI+ VRM - 8 Phase digital power design
- ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention
- ASUS ESD Guards - Enhanced ESD protection
- ASUS High-Quality 5K-Hour Solid Capacitors - 2.5x long lifespan with excellent durability
- ASUS Stainless Steel Back I/O - 3x more durable corrosion-resistant coating
ASUS TPU :
- Auto Tuning
- GPU Boost
- TPU switch
ASUS EPU :
- EPU
- EPU switch
ASUS Digital Power Design :
- Industry leading Digital 8 Phase Power Design
- CPU Power Utility
ASUS Exclusive Značilnosti :
- Remote GO!
- AI Suite 3
- Anti-Surge
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- USB 3.0 Boost
- Disk Unlocker
- Turbo LAN
- Crystal Sound 2
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
ASUS EZ DIY :
- Precision Tweaker 2
- ASUS O.C. Tuner
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS UEFI BIOS EZ Mode
- Push Notice
ASUS Q-Design :
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector
Special Memory O.C. Design
Overclocking Protection :
- ASUS C.P.R.(CPU Parameter Recall)
Media Streamer
Turbo App
Fan Xpert 3
Spletna stran proizvajalca: http://www.asus.com/Motherboards/Z97A/overview/
