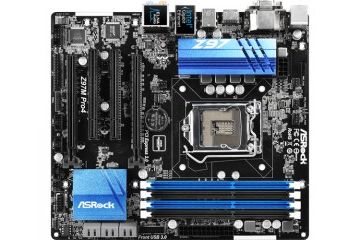

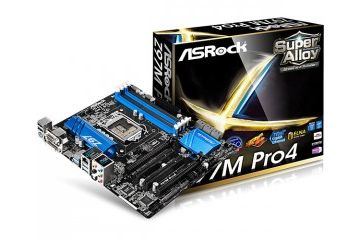

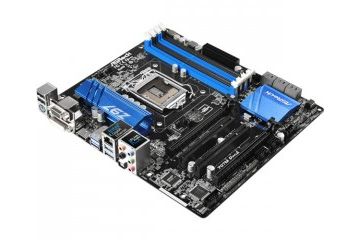

Osnovna Plošča ASRock Z97M Pro4

Spletna cena z DDV

€ 124,17   € 120,44 -3,00%
oz. že od € 3,63/mesec* (36 mesecev/5,50% obrestna mera)

INFORMATIVNI IZRAČUN PLAČIL NA OBROKE
Zapri

INFORMATIVNI IZRAČUN PLAČILA NA OBROKE Z PLAČILNO KARTICO DINERS


Zaloga: Preveri

Ni več v ponudbi

Koda izdelka:


Opis izdelka

# /





Processor

  Intel ® Core ™ i7 (Haswell), Intel ® Core ™ i5 (Haswell), Intel ® Core ™ i3 (Haswell), Intel ® Pentium G (Haswell), Intel ® Celeron G (Haswell), Intel ® Xeon E3 v3 (Haswell )

Vezni nabor

  Intel ® Z97 Express

Slots

PCI (32-bit) 2
support 33 MHz (5 volts)
PCIe x16 2

BIOS
  64 Mbit AMI UEFI

Form Factor
  ATX

Power Supply
  EPS (24-pin + 8-pin)

Memory

maximum 32 GB
Tipe of memory SDRAM DDR3
Memory Sockets 4 x DDR3
Storage standards DDR3-1066, DDR3-1333, DDR3-1600, DDR3-1866, DDR3-2133, DDR3-2400, DDR3-2800, DDR3-2933, DDR3-3100, Useable memory clock is the memory controller in the CPU-dependent.
Memory channels 2
ECC memory is supported No
Registered memory is supported No
Fully Buffered is required No

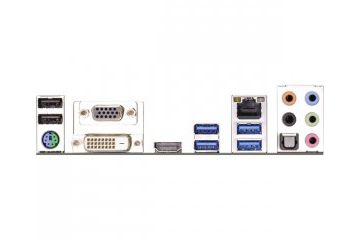

Connections

  1 x PS / 2 keyboard
  2 x 4-pin PWM fan
  3 x 3-pin fan



SATA controller


Tipe of controller Serial ATA
Internal connectors 6 x Serial ATA
Protocols Serial ATA/600
Max transfer rate 600 MB / s, 6.0 Gb / s
Chip Intel ® Z97 (PCH)
Maximum number of devices 6
Channels 6
Supported RAID Level
RAID Level 0, 1, 5, 10

1 USB controller

USB controller
Tipe of controller USB 2.0
External connectors 2 x USB-A
Protocols USB 2.0
Max transfer rate 60 MB / s
Maximum number of devices 127
Channels 1

2 USB controller

Tipe of controller USB 3.0
External connectors 4 x USB A
Protocols USB 3.0
Max transfer rate 600 MB / s, 5.0 Gb / s
Maximum number of devices 127
Channels 1

Graphic


MPEG2
Playback Yes
Encoding No
Direct connections
  1 x HDMI
  1 x DVI-D output
  1 x VGA output
Remark The graphic interface can be used only with processors with integrated graphics chip.

Sound

Chip Realtek ALC892
Inputs
  1 x Line In
  1 x Microphone
Outputs
  4 x Line-out
  1 x Digital Out (optical)
Channels
  analogous up to 8
  digitally up to 2
Surround Sound chip with HD Audio

LAN


Designation Intel ® i218V
Connections
  1 x RJ-45 (LAN)
Transfer rate
LAN 10/100/1000 Mbit / s
Vezni nabor Intel ® i218V

Special

  CrossFireX, Quad CrossFireX, Windows 7 ready, EFI, Windows 8 ready

Learn more

  In order to support the latest processor cores, a BIOS update may be required.The first PCIe x16 slot corresponding to PCI Express 3.0 standard. The second PCIe x16 slot corresponding to PCI Express 2.0 standard and runs with 4 lanes.Other equipment: ASRock Super Alloy, ASRock Full Spike Protection, ASRock cloud, ASRock APP Store
