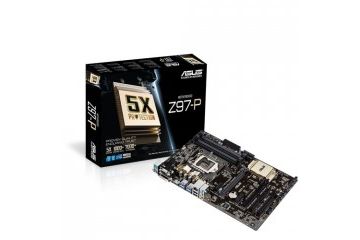

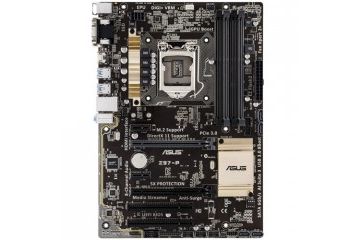

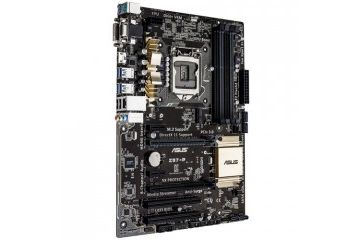

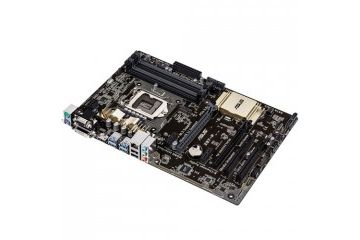

Osnovna Plošča ASUS Z97-P, 1005

Spletna cena z DDV

€ 114,20   € 110,77 -3,00%
oz. že od € 3,34/mesec* (36 mesecev/5,50% obrestna mera)

INFORMATIVNI IZRAČUN PLAČIL NA OBROKE
Zapri

INFORMATIVNI IZRAČUN PLAČILA NA OBROKE Z PLAČILNO KARTICO DINERS


Zaloga: Preveri

Ni več v ponudbi

Koda izdelka: 90MB0JP0-M0EAY0


Opis izdelka

#90MB0JP0-M0EAY0 /



  • CPU
    Intel® Socket 1150 for the 5th/New 4th/4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
    Supports Intel® 22 nm CPU
    Supports Intel® Turbo Boost Technology 2.0
    * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
    * Refer to www.asus.com for CPU support list
  • Vezni nabor
    Intel® Z97
  • Memory
    4 x DIMM, Max. 32GB, DDR3 3200(O.C.)/3100(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666(O.C.)/2600(O.C.)/2400(O.C.)/2250(O.C.)/2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1600/1333 MHz Non-ECC, Un-buffered Memory *
    Dual Channel Memory Architecture
    Supports Intel® Extreme Memory Profile (XMP)
    * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  • Graphic
    Integrated Graphics Processor- Intel® HD Graphics support
    Multi-VGA output support : HDMI/DVI-D/RGB ports
    - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
    - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
    - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
    Maximum shared memory of 512 MB
    Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
    Supports up to 3 displays simultaneously
  • Expansion Slots
    1 x PCIe 3.0/2.0 x16 (x16 mode, gray)
    1 x PCIe 2.0 x16 (x2 mode, black)
    2 x PCIe x1
    2 x PCI
  • Storage
    Intel® Z97 chipset :
    1 x M.2 Socket 3, , with M Key, type 2260/2280 storage devices support (both SATA & PCIE mode)*1
    4 x SATA 6Gb/s port(s), gray
    Support Raid 0, 1, 5, 10
    Supports Intel® Smart Response Technology, Intel® Rapid Start Technology, Intel® Smart Connect Technology *1
  • LAN
    Realtek® 8111GR, 1 x Gigabit LAN Controller(s)
  • Audio
    Realtek® ALC891 8-Channel High Definition Audio CODEC *2
    - Supports : Jack-detection, Front Panel Jack-retasking
    Audio Feature :
    - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
    - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
    - Audio amplifier: Provides the highest-quality sound for headphone and speakers
    - Unique de-pop circuit: Reduces start-up popping noise to audio outputs
  • USB Ports
    Intel® Z97 chipset :
    6 x USB 3.0/2.0 port(s) (4 at back panel, blue, 2 at mid-board)
    Intel® Z97 chipset :
    8 x USB 2.0/1.1 port(s) (2 at back panel, black, 6 at mid-board)
  • Special Značilnosti
    ASUS 5X Protection :
    - ASUS DIGI+ VRM - 4 Phase digital power design
    - ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention
    - ASUS ESD Guards - Enhanced ESD protection
    - ASUS High-Quality 5K-Hour Solid Capacitors - 2.5x long lifespan with excellent durability
    - ASUS Stainless Steel Back I/O - 3x more durable corrosion-resistant coating
    ASUS EPU :
    - EPU
    ASUS Exclusive Značilnosti :
    - TurboV EVO
    - GPU Boost
    - AI Suite 3
    - Ai Charger
    - Anti-Surge
    - USB 3.0 Boost
    - Disk Unlocker
    Interactive HomeCloud
    - Media Streamer
    ASUS Quiet Thermal Solution :
    - Stylish Fanless Design Heat-sink solution & MOS Hladilnik
    - ASUS Fan Xpert 2+
    ASUS EZ DIY :
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 2
    - ASUS UEFI BIOS EZ Mode
    - Push Notice
    ASUS Q-Design :
    - ASUS Q-Slot
  • Operating System Support
    Windows® 8.1
    Windows® 8
    Windows® 7

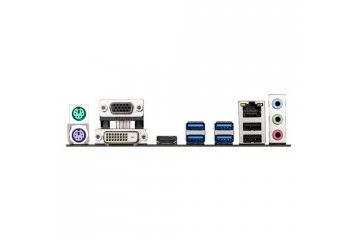

  • Back I/O Ports
    1 x PS/2 keyboard (purple)
    1 x PS/2 mouse (green)
    1 x DVI-D
    1 x D-Sub
    1 x HDMI
    1 x LAN (RJ45) port(s)
    4 x USB 3.0 (blue)
    2 x USB 2.0
    3 x Audio jack(s)
  • Internal I/O Ports
    1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
    3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
    1 x M.2 Socket 3 for M Key, type 2260/2280 devices
    1 x TPM header
    1 x COM port(s) connector(s)
    4 x SATA 6Gb/s connector(s)
    1 x CPU Fan connector(s) (1 x 4 -pin)
    2 x Chassis Fan connector(s) (2 x 4 -pin)
    1 x S/PDIF out header(s)
    1 x 24-pin EATX Power connector(s)
    1 x 8-pin ATX 12V Power connector(s)
    1 x Front panel audio connector(s) (AAFP)
    1 x System panel(s)
    1 x Clear CMOS jumper(s)
  • Accessories
    User's manual
    I/O Shield
    2 x SATA 6Gb/s cable(s)
  • BIOS
    64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 2.7, WfM 2.0, SM BIOS 2.8, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 2,
    CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified Log, F12 PrintScreen function, F3 Shortcut function, and ASUS DRAM SPD (Serial Presence Detect) memory information
  • Manageability
    WfM 2.0, DMI 2.7, WOL by PME, PXE
  • Support Disc
    Drivers
    ASUS Utilities
    EZ Update
    Anti-virus software (OEM version)
  • Form Factor
    ATX Form Factor
    12 inch x 8.4 inch ( 30.5 cm x 21.3 cm )
  • Note
    *1: These functions will work depending on the CPU instvsed.
    *2: Use a chassis with HD audio module in the front panel to support an 8-channel audio output.
