Osnovne plošče
Spletna cena z DDV
Zaloga: Zadnji kosi

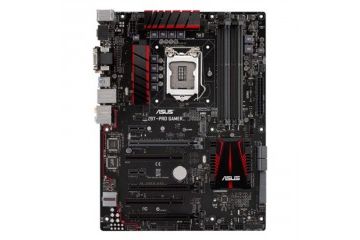

Šifra izdelka: Z97-PRO GAMER
PODNOŽJE: INTEL LGA 1150
ZA PROCESORJE: 5th/new4th/4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron®
FORMAT: ATX Form Factor 30.5 x 24.4 cm
VEZNI ČIP: Intel Z97
POMNILNIK:
4 x DIMM DDR3 (3200(O.C.)/3100(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666(O.C.)/2500(O.C.)/2400(O.C.)/2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1600/1333MHz) do skupno 32GB kapacitete, dual channel podpora
GRAFIKA: DA / Intel® HD Graphics
RAID: DA (0,1,5,10)
Intel® Smart Response Technology, Intel® Rapid Start Technology, Intel® Smart Connect Technology
RAZŠIRITVENE REŽE:
2 x PCIe 3.0/2.0 x16 (x16 or dual x8)
1 x PCIe 2.0 x16 (x4 mode)
2 x PCIe 2.0 x1
2 x PCI
MREŽNA KARTICA: Intel® I218V Gigabit LAN Controller(s), featuring GAMEFIRST II
ZVOČNA KARTICA: SupremeFX 8-Channel High Definition Audio CODEC
NOTRANJI PRIKLJUČKI:
1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
1 x SATA Express connector: gray, compatible with 2 x SATA 6.0 Gb/s ports
1 x M.2 Socket 3 for M Key, type 2260/2280 devices
1 x TPM header
1 x COM port(s) connector(s)
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x CPU OPT Fan connector(s) (1 x 4 -pin)
3 x Chassis Fan connector(s) (3 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Thermal sensor connector(s)
1 x Clear CMOS jumper(s)
ZUNANJI PRIKLJUČKI:
1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.0 (blue)
2 x USB 2.0
1 x Optical S/PDIF out
6 x Audio jack(s)
DODATNO:
ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 :
- 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 3, and Turbo App
Gamer\'s Guardian:
- ESD Guards on LAN, Audio, KBMS and USB3.0/2.0 ports
- DRAM Overcurrent Protection
- 10K Black Metallic Capacitors
- Stainless Steel Back I/O
- DIGI+ VRM
ASUS TPU :
- Auto Tuning
- TurboV
- GPU Boost without switch
ASUS EPU :
- EPU
ASUS Exclusive Značilnosti :
- AI Suite 3
- Ai Charger
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- USB 3.0 Boost
- Disk Unlocker
Interactive HomeCloud
- Media Streamer
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert 3
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS UEFI BIOS EZ Mode
- Push Notice
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-Slot
- ASUS Q-DIMM
Spletna stran proizvajalca: http://www.asus.com/Motherboards/Z97PRO_GAMER/overview/
