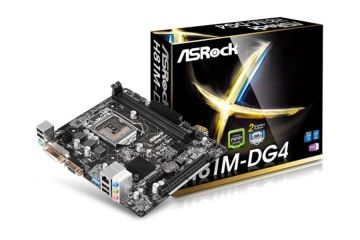

Šifra izdelka: H81M-DG4
PODNOŽJE: INTEL LGA 1150
ZA PROCESORJE: Intel Core i7/i5/i3 / Intel Pentium / Intel Celeron
FORMAT: Micro ATX Form Factor
VEZNI ČIP: Intel H81
POMNILNIK:
2 x 1.5V DDR3/DDR3L DIMM (1600/1333/1066MHz) do skupno 16GB kapacitete, dual channel podpora
GRAFIKA: DA / preko CPU
RAID: NE
RAZŠIRITVENE REŽE:
1 x PCI Express 2.0 x16
1 x PCI Express x1
MREŽNA KARTICA: Realtek LAN chip (10/100/1000 Mbit)
ZVOČNA KARTICA: Realtek ALC662 audio codec High Definition Audio (2/4/5.1channel)
NOTRANJI PRIKLJUČKI:
2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
2 x SATA2 3.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
1 x Power LED Header
1 x Chassis Intrusion Header
1 x TPM Header
1 x CPU Fan Connector (4-pin)
1 x Chassis Fan Connector (4-pin)
1 x 24 pin ATX Power Connector
1 x 4 pin 12V Power Connector
1 x Front Panel Audio Connector
2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
ZUNANJI PRIKLJUČKI:
1 x PS/2 Mouse/Keyboard Port
1 x D-Sub Port
1 x DVI-D Port
4 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
2 x USB 3.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jack: Line in / Front Speaker / Microphone
DODATNO:
ASRock A-Tuning
ASRock Disk Health Report
ASRock USB Key
ASRock APP Charger
ASRock XFast LAN
ASRock XFast RAM
ASRock Restart to UEFI UEFI
ASRock Interactive UEFI
ASRock UEFI Guide
ASRock Instant Flash
ASRock Internet Flash
ASRock Crashless BIOS
ASRock OMG (Online Management Guard)
ASRock UEFI Tech Service
Hardware Monitor - CPU/Chassis temperature sensing
CPU/Chassis Tachometer
CPU Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
CPU/Chassis Fan multi-speed control
CASE OPEN detection
Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
Spletna stran proizvajalca: http://www.asrock.com/mb/Intel/H81M-DG4/
