Osnovne plošče

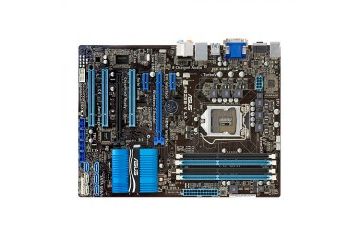

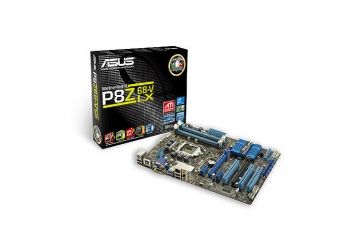

1005 S-1155 ASUS P8Z68-V LX, ATX

Spletna cena z DDV

€ 113,16   € 105,24 -7,00%
oz. že od € 3,30/mesec* (36 mesecev/5,50% obrestna mera)

INFORMATIVNI IZRAČUN PLAČIL NA OBROKE
Zapri

INFORMATIVNI IZRAČUN PLAČILA NA OBROKE Z PLAČILNO KARTICO DINERS


Zaloga: Preverite na info@sestavi.si ali preko obrazca za spletno pomoč

Ni več v ponudbi

Koda izdelka:


Opis izdelka



Šifra izdelka: 90-MIB580-G0EAY0KZ

Specifications


CPUIntel® Socket 1155 for 2nd Generation Core™ i7/Core™ i5/Core™ i3 Processors
Supports Intel® 32 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list
Vezni naborIntel® Z68
Memory4 x DIMM, Max. 32GB, DDR3 2200(O.C.)/2133(O.C.)/1866(O.C.)/1600/1333/1066 Hz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists).
* Due to CPU behavior, DDR3 2200/2000/1800 MHz memory module will run at DDR3 2133/1866/1600 MHz frequency as default.
GraphicIntegrated Graphics Processor
Multi-VGA output support : HDMI/DVI/RGB ports
- Supports HDMI with max. resolution 1920 x 1200 @ 60 Hz
- Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 2048 x 1536 @ 75 Hz
Maximum shared memory of 1748 MB
Multi-GPU SupportSupports AMD Quad-GPU CrossFireX™ Technology
Supports LucidLogix® Virtu™ Technology
Expansion Slots1 x PCIe 2.0 x16 (blue) *1
1 x PCIe 2.0 x16 (x4 mode, black) *1
2 x PCIe 2.0 x1
3 x PCI
StorageIntel® Z68 chipset :
2 x SATA 6Gb/s port(s), gray
4 x SATA 3Gb/s port(s), blue
Support Raid 0, 1, 5, 10
Support Intel® Smart Response Technology on 2nd generation Intel® Core™ processor family
LANRealtek® 8111E , 1 x Gigabit LAN Controller(s)
AudioRealtek® ALC887 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio Feature :
- Optical S/PDIF out port(s) at back panel
USB PortsASMedia® USB 3.0 controller :
2 x USB 3.0 port(s) (2 at back panel, blue)
Intel® Z68 chipset :
12 x USB 2.0 port(s) (4 at back panel, black, 8 at mid-board)
Overclocking ZnačilnostiOverclocking Protection :
- ASUS C.P.R.(CPU Parameter Recall)
Special ZnačilnostiASUS Dual Intelligent Processors - TPU & EPU :
ASUS TPU :
- Auto Tuning
- TurboV
- GPU Boost
- TPU switch
ASUS EPU :
- EPU
ASUS Power Design :
- 4 +2 Phase Power Design
ASUS Exclusive Značilnosti :
- MemOK!
- AI Suite II
- Ai Charger+
- Anti-Surge
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- Disk Unlocker
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS O.C. Tuner
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
ASUS Q-Design :
- ASUS Q-Slot

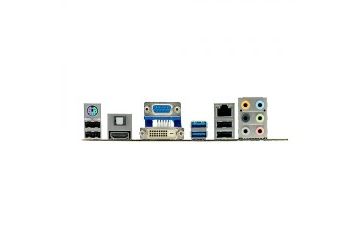

Back I/O Ports1 x DVI
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.0
4 x USB 2.0
1 x Optical S/PDIF out
6 x Audio jack(s)
Internal I/O Ports4 x USB 2.0 connector(s) support(s) additional 8 USB 2.0 port(s)
1 x COM port(s) connector(s)
2 x SATA 6Gb/s connector(s)
4 x SATA 3Gb/s connector(s)
1 x CPU Fan connector(s) (4 -pin)
2 x Chassis Fan connector(s) (4 -pin)
1 x Power Fan connector(s) (3 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x MemOK! button(s)
1 x TPU switch(es)
AccessoriesUser's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
BIOS64 Mb Flash ROM, EFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a, Multi-language BIOS,
ASUS EZ Flash 2, ASUS CrashFree BIOS 3, F12 PrintScreen Function
ManageabilityWfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE
Support DiscDrivers
ASUS Utilities
ASUS Update
LucidLogix® Virtu software
Anti-virus software (OEM version)
Form FactorATX Form Factor
12 inch x 9 inch ( 30.5 cm x 22.9 cm )
Note*1: The PCIe x16_2 slot shares Pasovna širina with PCIe x1_1 slot, PCIe x1_2 slot.
