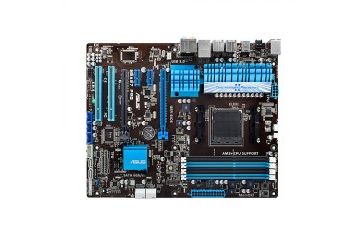

1005 Socket-AM3+ ASUS M5A97 Pro, ATX

Spletna cena z DDV

€ 99,85   € 96,85 -3,00%
oz. že od € 2,92/mesec* (36 mesecev/5,50% obrestna mera)

INFORMATIVNI IZRAČUN PLAČIL NA OBROKE
Zapri

INFORMATIVNI IZRAČUN PLAČILA NA OBROKE Z PLAČILNO KARTICO DINERS


Zaloga: Preverite na info@sestavi.si ali preko obrazca za spletno pomoč

Ni več v ponudbi

Koda izdelka:


Opis izdelka

Šifra izdelka: 90-MIBFX0-G0AAY00Z



Specifications


CPUAMD AM3+ FX™/Phenom™ II/Athlon™ II/Sempron™ 100 Series Processors
Supports AM3+ 32 nm CPU
Supports CPU up to 8 cores
Supports CPU up to 140 W
AMD Cool 'n' Quiet™ Technology
Vezni naborAMD 970/SB950
Memory4 x DIMM, Max. 32GB, DDR3 2133(O.C.)/1866/1800/1600/1333/1066 MHz ECC, Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
* Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists).
* Due to OS limitation, when installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows® OS when you want to install 4GB or more memory on the motherboard.
* Due to CPU spec., AMD 100 series CPUs support up to DDR3 1066MHz. With ASUS design, this motherboard can support up to DDR3 1333MHz.
Multi-GPU SupportSupports AMD Quad-GPU CrossFireX™ Technology
Expansion Slots1 x PCIe 2.0 x16 (blue)
1 x PCIe 2.0 x16 (x4 mode, black)
2 x PCIe 2.0 x1
2 x PCI
StorageAMD SB950 controller :
6 x SATA 6Gb/s port(s), gray
Support Raid 0, 1, 5, 10
JMicron® JMB362 controller :
2 x eSATA 3Gb/s port(s), red
LANRealtek® 8111E , 1 x Gigabit LAN Controller(s)
AudioRealtek® ALC892 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio Feature :
- Absolute Pitch 192kHz/ 24-bit True BD Lossless Sound
- DTS Surround Sensation UltraPC
- ASUS Noise Filter
- Optical S/PDIF out port(s) at back panel
USB PortsASMedia® USB 3.0 controller :
2 x USB 3.0 port(s) (2 at back panel, blue)
AMD SB950 controller :
14 x USB 2.0 port(s) (8 at back panel, black+red, 6 at mid-board)
Overclocking ZnačilnostiOverclocking Protection :
- ASUS C.P.R.(CPU Parameter Recall)
Special ZnačilnostiASUS Dual Intelligent Processors 2 with DIGI+ VRM :
ASUS TPU :
- Auto Tuning
- TurboV
ASUS EPU :
- EPU
ASUS Digital Power Design :
- Industry leading Digital 6 +2 Phase Power Design
- ASUS DIGI+ VRM Utility
ASUS Exclusive Značilnosti :
- MemOK!
- AI Suite II
- Ai Charger+
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- USB 3.0 Boost
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS O.C. Profile
- ASUS EZ Flash 2
- ASUS MyLogo 2
- Multi-language BIOS
ASUS Q-Design :
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector
Back I/O Ports1 x PS/2 keyboard/mouse combo port(s)
2 x eSATA 3Gb/s
1 x LAN (RJ45) port(s)
2 x USB 3.0
8 x USB 2.0
1 x Optical S/PDIF out
6 x Audio jack(s)
Internal I/O Ports3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
1 x COM port(s) connector(s)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (4 -pin)
2 x Chassis Fan connector(s) (1 x 4 -pin, 1 x 3 -pin)
1 x Power Fan connector(s) (1 x 3 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s) (Q-Connector)
1 x MemOK! button(s)
1 x Clear CMOS jumper(s)
AccessoriesUser's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x Q-connector(s) (2 in 1)
BIOS32 Mb Flash ROM, UEFI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.6, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2
ManageabilityWfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE
Support DiscDrivers
ASUS Utilities
ASUS Update
Anti-virus software (OEM version)
Form FactorATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
