Dostopne točke
Spletna cena z DDV
Zaloga: Ne
Šifra izdelka: U6-Lite

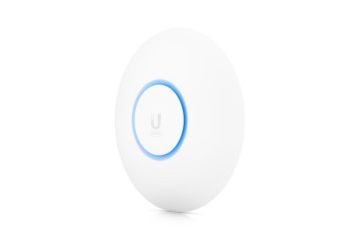

Dostopna točka Wi-Fi 6 z dvopasovnim 2x2 MIMO v kompaktni izvedbi za nizkoprofilno namestitev.
UniFi 6 Lite je 2x2 Wi-Fi 6 dostopna točka, ki zagotavlja radijsko frekvenco do 1,5 Gbps s 5 GHz (MU-MIMO in OFDMA) in 2,4 GHz (MIMO).
UniFi 6 Lite namestite vodoravno v strop, da pokrije okolje z visoko gostoto, ali pa ga namestite navpično na steno, da razširite svoj domet.
UniFi 6 Lite ima kompaktno in majhno zasnovo, zato lahko uporablja pokrove nanoHD in dodatke za pritrditev.
LASTNOSTI:
- 2x2 visoko učinkovit Wi-Fi 6
- 5 GHz pas 2x2 MU-MIMO in OFDMA s hitrostjo 1,2 Gbps
- 2,4 GHz pas 2x2 MIMO s hitrostjo 300 Mbps
- Gigabitni Ethernet, napaja se s 802.3af PoE (PoE injektor ni vključen)
- Združljiv s pokrovi UAP-nanoHD in vgradnim nosilcem
- Upravlja se z različico omrežne aplikacije UniFi: 5.14.3 ali novejša
SPECIFIKACIJE:
Mechanical | |
Dimensions | Ø160 x 32.65 mm (Ø6.3 x 1.3") |
Weight | Without Mount: 300 g (10.6 oz) |
With Mount: 315 g (11.1 oz) | |
Enclosure Characteristics | Polycarbonate 110 and ADC12 Die Casting |
Mounting Characteristics | Polycarbonate, SGCC Steel |
Hardware | |
Processor Specs | 880 MHz MIPS 1004 KEc |
Memory Information | 256 MB |
Management Interface | Ethernet In-Band |
Networking Interface | (1) 10/100/1000 Mbps Ethernet RJ45 |
Buttons | Factory Reset |
LEDs | White/Blue |
Power Method | 802.3af PoE, Passive PoE (48V) |
Power Supply | 802.3af PoE; 48V, 0.32A PoE Adapter (Not Included) |
Supported Voltage Range | 44 to 57VDC |
Max. Power Consumption | 12W |
Max. TX Power | |
2.4GHz | 23 dBm |
5GHz | 23 dBm |
MIMO | |
2.4GHz | 2 x 2 |
5GHz | 2 x 2 |
Throughput Speeds | |
2.4GHz | 300 Mbps |
5GHz | 1201 Mbps |
Antenna Gain | |
2.4GHz | 2.8 dBi |
5GHz | 3 dBi |
Operating Temperature | -30 to 60° C (-22 to 140° F) |
Operating Humidity | 5 - 95% Noncondensing |
Certifications | CE, FCC, IC |
Software | |
Wi-Fi Standards | 802.11a/b/g |
Wi-Fi 4/Wi-Fi 5/Wi-Fi 6 | |
Wireless Security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3*) |
*Supported With Upcoming Controller Versions | |
BSSID | 8 per Radio |
VLAN | 802.1Q |
Advanced QoS | Per-User Rate Limiting |
Guest Traffic Isolation | Supported |
Concurrent Clients | 300+ |
Supported Data Rates (Mbps) | |
802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
802.11n (Wi-Fi 4) | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
802.11b | 1, 2, 5.5, 11 Mbps |
802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
802.11ac (Wi-Fi 5) | 6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80) |
802.11ax (Wi-Fi 6) | 6.3 Mbps to 1.2 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80) |
