Routerji WiFi
Spletna cena z DDV
Zaloga: Ne
Šifra izdelka: CRS309-1G-8S+IN

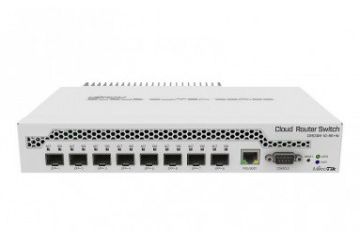

CRS309-1G-8S + je zelo kompaktno, a zmogljivo omrežno stikalo.
Ima osem SFP+ rež, ki podpirajo do 10 Gbit modul v vsaki reži, kar ima za posledico skupno preklopno zmogljivost 162 Gbps in skupno neblokirajočo pretočnost 81 Gbps.
Naprava ima tudi dvojedrni 800 MHz CPU, 512 MB RAM-a, upravljalna Ethernet vrata z vhodno močjo PoE, serijska vrata RS232, ozemljitveni terminal in je sposoben dvojnega zagona (izberite kateri operacijski sistem želite, RouterOS ali SwOS).
Specifikacije
Details | |
Product code | CRS309-1G-8S+IN |
Architecture | ARM 32bit |
CPU | 98DX8208 |
CPU core count | 2 |
CPU nominal frequency | 800 MHz |
Dimensions | 272 x 191 x 44 mm |
RouterOS license | 5 |
Operating System | RouterOS / SwitchOS |
Size of RAM | 512 MB |
Storage size | 16 MB |
Storage type | FLASH |
MTBF | Approximately 200'000 hours at 25C |
Tested ambient temperature | -40°C to 70°C |
Powering | |
Details | |
Number of DC inputs | 2 (DC jack, PoE-IN) |
DC jack input Voltage | 12-57 V |
Max power consumption | 23 W |
Max power consumption without attachments | 17 W |
FAN count | Passive |
PoE in | 802.3af/at |
PoE in input Voltage | 18-57 V |
Ethernet | |
Details | |
10/100/1000 Ethernet ports | 1 |
Fiber | |
Details | |
SFP+ ports | 8 |
Peripherals | |
Details | |
Serial console port | RS232 |
Other | |
Details | |
CPU temperature monitor | Yes |
Certification & Approvals | |
Details | |
Certification | CE, EAC, ROHS |
IP | IP20 |
