Osnovne plošče

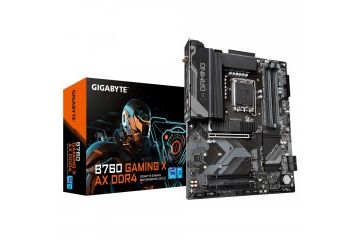

GIGABYTE B760 GAMING X AX DDR4, DDR4, SATA3, USB3.2Gen2, DP, WiFi, LGA1700 ATX

Spletna cena z DDV

€ 170,96   € 158,99 -7,00%
oz. že od € 4,99/mesec* (36 mesecev/5,50% obrestna mera)

INFORMATIVNI IZRAČUN PLAČIL NA OBROKE
Zapri

INFORMATIVNI IZRAČUN PLAČILA NA OBROKE Z PLAČILNO KARTICO DINERS


Zaloga: Ne

Koda izdelka: B760 GAMING X AX DDR4


Opis izdelka

Šifra izdelka: B760 GAMING X AX DDR4

PODNOŽJEINTEL LGA 1700
ZA PROCESORJE: 13th/12th Generation Core i7/i5/i3/Pentium/Celeron
FORMAT: ATX format 30.5 cm x 24.4 cm
VEZNI ČIP: INTEL B760
POMNILNIK:
4 x DDR4 DIMM ECC/non-ECC 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133MHz) do skupno 128GB kapacitete, dual channel in XMP podpora
GRAFIKA: DA - preko CPU
RAIDRAID 0, RAID 1, RAID 5, and RAID 10
RAZŠIRITVENE REŽE:
1 x PCI Express 4.0/3.0 x16
2 x PCI Express 3.0 x1
MREŽNA KARTICA: Realtek 2.5GbE LAN chip + AMD Wi-Fi 6E RZ608 (MT7921K) WIFI a, b, g, n, ac, ax + BLUETOOTH 5.2
ZVOČNA KARTICA: Realtek codec High Definition Audio (2/4/5.1/7.1-channel)
NOTRANJI PRIKLJUČKI:
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip headers
2 x RGB LED strip headers
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Q-Flash Plus button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper
ZUNANJI PRIKLJUČKI:
1 x USB 3.2 Gen 2 Type-A port (red)
2 x USB 3.2 Gen 1 ports
5 x USB 2.0/1.1 ports
2 x SMA antenna connectors (2T2R)
1 x DisplayPort
1 x HDMI port
1 x RJ-45 port
6 x audio jacks
DODATNO:


iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Bundled Software
Norton® Internet Security (OEM version)
LAN bandwidth management software


Spletna stran proizvajalca: https://www.gigabyte.com/Motherboard/B760-GAMING-X-AX-DDR4-rev-10#kf
