Osnovne plošče
Spletna cena z DDV
Zaloga: Ne

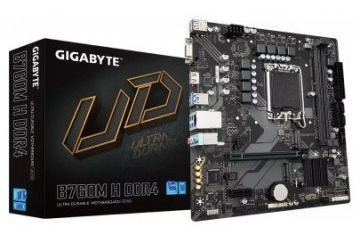

Šifra izdelka: B760M H DDR4
PODNOŽJE: INTEL LGA 1700
ZA PROCESORJE: 13th/12th Generation Core i7/i5/i3/Pentium/Celeron
FORMAT: mATX format 23cm x 21.5 cm
VEZNI ČIP: INTEL B760
POMNILNIK:
2 x DDR4 DIMM ECC/non-ECC 3200/3000/2933/2666/2400/2133MHz) do skupno 128GB kapacitete, dual channel in XMP podpora
GRAFIKA: DA - preko CPU
RAID: RAID 0, RAID 1, RAID 5, and RAID 10
RAZŠIRITVENE REŽE:
1 x PCI Express 4.0/3.0 x16
1 x PCI Express 3.0 x1
MREŽNA KARTICA: Realtek GbE LAN chip
ZVOČNA KARTICA: Realtek codec High Definition Audio (2/4/5.1/7.1-channel)
NOTRANJI PRIKLJUČKI:
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Clear CMOS jumper
ZUNANJI PRIKLJUČKI:
2 x USB 2.0/1.1 ports
1 x D-Sub port
1 x HDMI port
4 x USB 3.2 Gen 1 ports
1 x RJ-45 port
3 x audio jacks
DODATNO:
iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
BIOS
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Bundled Software
Norton® Internet Security (OEM version)
LAN bandwidth management software
Operating System
Support for Windows 11 64-bit
Support for Windows 10 64-bit
Spletna stran proizvajalca: B760M H DDR4 (rev. 1.0) Key Features | Motherboard - GIGABYTE Global
